COMPLETELY HANDS-FREE
The Auto Pool Reel the only automatic pool cover on the market that operates as seamlessly as integrated swimming pool covers without the installation
of coping or cables. Watch it roll on and off your pool with a flip of a switch.
Your Pool Day Powered by the Auto Pool Reel
For pool ownership that’s as easy as lounging carefree by the poolside while your cover unwinds itself.
(And winds itself back up again.)
- Flip the switch “on”.
-
The pool cover deploys automatically, gliding onto the water on its own,
and self-adjusting along the way. -
No manual pulling, aligning, or re-adjusting is ever needed as the reel
unwinds the pool cover. - Once the pool is covered, flip the switch to the center position to stop the cover.
- Flip the switch “off”.
-
The pool cover retracts automatically, gliding off the water on its own,
and self-adjusting along the way. -
No manual pulling, aligning, or adjusting is ever needed as the pool
cover winds itself neatly around the reel. - Once the pool is uncovered, flip the switch to the center position to stop the cover.
Unwinding re-imagined
Discover the features that give the Auto Pool Reel its revolutionary edge.
Patented Edge-Guide Technology
Appendable Feed Strips are the connecting pieces that attach your pool cover to the
cover system, giving you plenty of flexibility when it comes to selecting a cover. Once
secured to the cover, they’re fed through the Edge-Guides. The Auto Pool Reel takes it
from there.
Appendable Strips
Equipped with magnetic sensors, patented Edge-Guides situated on either side of the
reel, are what make the Auto Pool Reel so uniquely capable. We call them Edge-Guide
“arms” but they’re the hands that guide, correct, and re-adjust the cover for you.
-

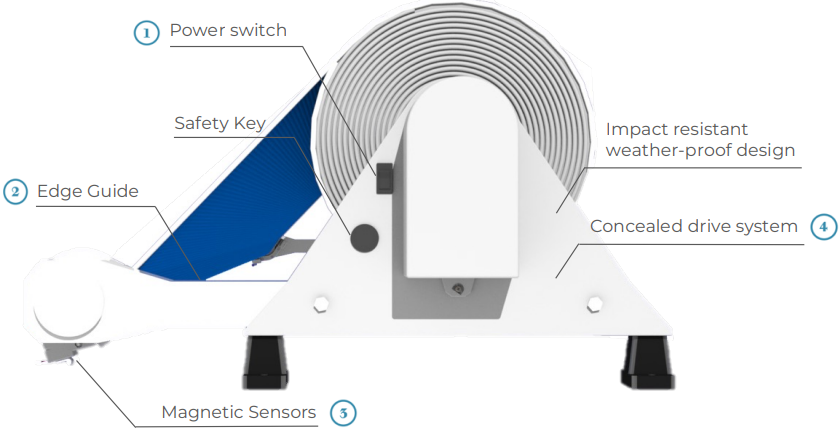

Power Switch: With the flip of a switch, the reel unwinds or
retracts the pool cover. Balancing the switch between on &
off pauses or stops the cover. 1 -
Edge-Guide Arms: Situated on either side of the reel, the
Edge-Guides rest on the edge of the pool’s coping. Their
job is to direct and adjust the cover as it unravels. 2 -
State-of-the-Art Drive System: High torque, low-voltage,
gear motors are used to unwind and retract the pool cover
safely, efficiently, and repeatedly. 3
Dive into the individual mechanisms that make the
Auto Pool Reel work
Power Switch
With the flip of a switch, the cover system unwinds or retracts the cover. Balancing the power switch between the on and off settings (neutral) will pause/stop the pool cover at
any time.
Low-Voltage Motors
High torque, low-voltage, gear motors unwind and retract the pool cover safely, efficiently, and repeatedly. One-way rotation technology and patented Edge-Guide technology,
used in tandem, propel the pool cover on and off the water completely hands-free.
Sealed Motor Mechanisms
The Auto Pool Reel’s motorized mechanisms are sealed in weather-proof, protective casing so the reel can thrive in high-traffic splash-zones, stand up to inclement weather, and
continue to operate flawlessly with constant, repeated use.
One-Way Rotation Technology
One-way rotation technology suspends the main reel as it spins to unwind. This traction-inhibiting technology locks up when the cover retracts, so that the Edge-Guides can
unwind and windup the pool cover effortlessly each time.
End-Supports
The ends-supports are A frame-shaped supports situated on either end of the main reel. They house the motor mechanisms and other electrical components, so they’re neatly concealed and protected from the elements.
Main Reel
The main reel is made of telescoping tubes that come in 3 different sizes. These tubes allow the reel to be adjusted within a certain range to accommodate the specific width of your swimming pool.
Rubber Mounts
The rubber mounts support the A-frame end pieces or ‘end supports’. The rubber feet won’t scratch, slide, or shift out of place when sitting on your pool deck.

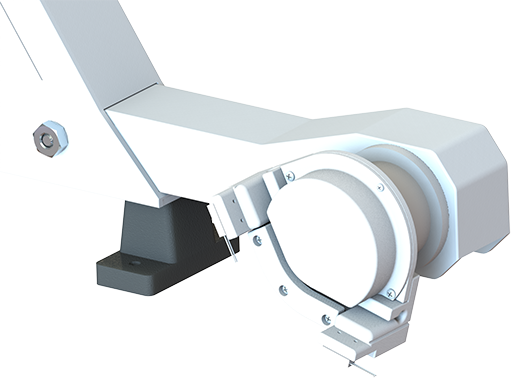

Edge-Guide Arms
Patented intelligent arms on either side of the reel are called Edge-Guides. We call them Edge-Guide “arms” but they’re the hands that guide, correct, and re-adjust the cover for you.

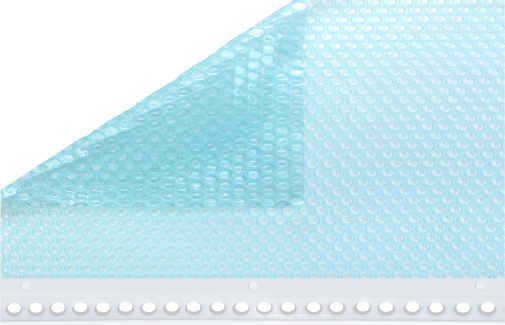

Appendable Strips
The reel’s appendable strips are flexible tractor-feed strips that allow you to attach your cover to the reel system. Once the strips are secured to each side of the cover, they are fed through the edge-guide arms. The appendable strips come in different sizes for various pool cover lengths.
